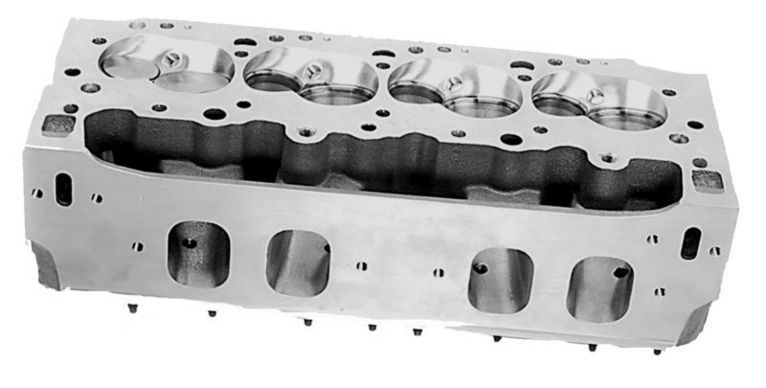

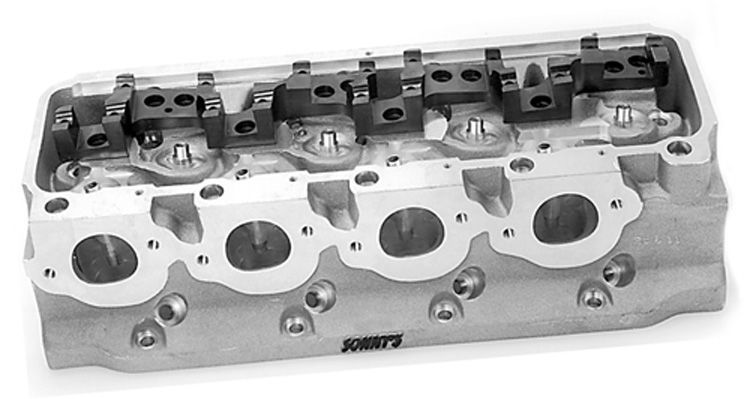

SONNY'S 14.5 DEGREE BRODIX PONTIAC HEADS FOR MARINE APPLICATIONS

4.840 Race Ready Fully Assembled Heads
(Pictures may show optional equipment. Click to enlarge.)

Description

At Sonny's all head porting is done in-house. We use a state of the art 5 axis CNC vertical machining center, which can produce precision work to programmed "blue print" specs. This unique cylinder head was designed by Sonny's for 500+ cu. in. engines. These cylinder heads are available in 4.840 and 4.900 bore spacing. We offer these heads with Ductile seats and Ampco 45 replaceable drive-in step guides. These Pontiac castings incorporate the heart shape combustion chambers and spread port design intake runners. We have designed a one-piece rocker bar for stability and endurance. SAR will also supply you with custom sheet metal billet rail valve covers and cast or sheet metal intakes.

Price: $8,700.00
✷ Call 434-239-1009 or Contact Us

Specifications

  • 14.5 DEGREE PONTIAC W/4.840" B.S.
  • 4.600" bore chamber - 80 CC
  • Intake valve - 2.480"
  • Exhaust valve - 1.900"
  • Intake flow 538 - cfm @ .800" / 514 cfm @ .700" / With 28" H20
  • Intake runner volume - 494 CC
  • Exhaust runner volume - 184 CC
  • Intake valve angles - 14.5 degree x 4 degree
  • Actual intake square in. 1.90 x 2.53 = 4.8 - 3/4R = 4.32

Options

Blown alcohol applications $8,710.00
For questions or additional information, call 434-239-1009 or Contact Us
